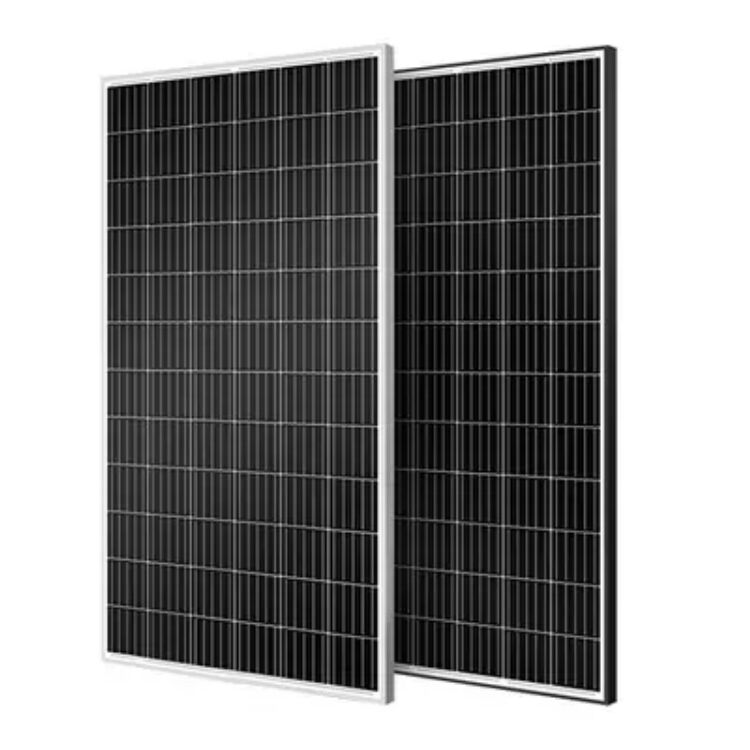

340 watt Poly Solar Panel
37.5V Poly Solar Panel 72 Cells
340W silicon solar pv module
| Model | LS-340P |
| Maximum Power(Pmax) | 340W |
| Maximum Power Voltage(Vmp) | 37.5V |
| Maximum Power Current(Imp) | 9.65A |
| Open Circuit Voltage(Voc) | 46.35V |
| Short Circuit Current(Isc) | 9.85A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Poly-crystalline |
| Contract Dimensions(mm) | 1950*992*40mm |
| Weight(KGS) | 23kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 17.25% |
| Cell number | 72(6x12) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Where are your goods exported?
A:We can export to all over the world.
Q5:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.
1)Durable&Sturdy
The product contains anodized aluminum alloy frame.It can work in the temperature between -40℃~85℃ and withstand the high winds (2400Pa) and snow loads (5400Pa).
2)Wide application
Common applications includes RV, camper, car, marine, residential rooftop, remote farm,traffic signs, etc.
3)eco-friendly
It uses polycrystalline solar cells. A poly crystalline solar panel is economical, eco-friendly, consumes less energy, and can function in all temperatures.
