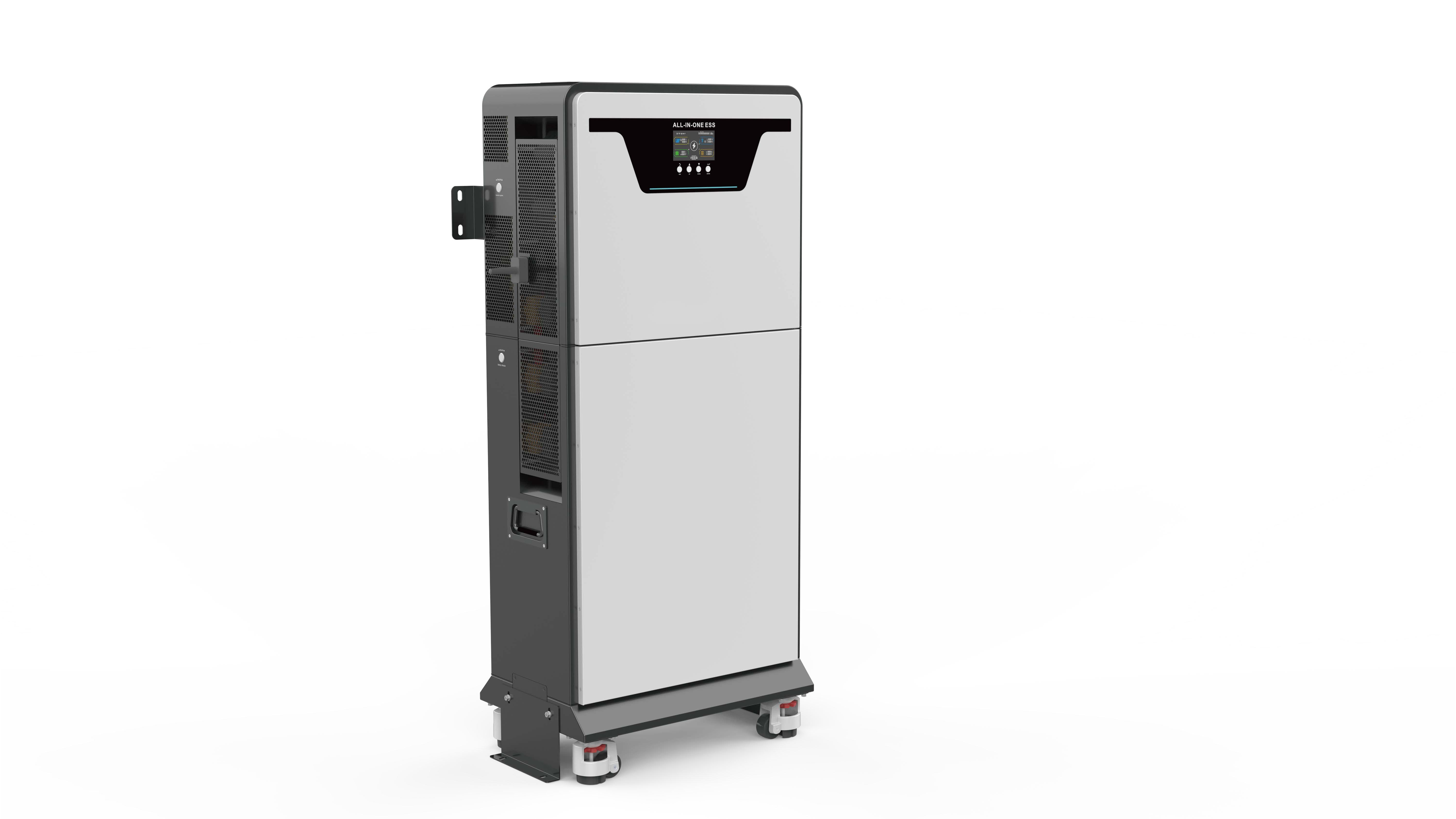

16kWh Stackable Hybrid Grid LiFePO4 Home ESS — IP65 Wall-Mounted Energy Storage System

• All-in-one hybrid design — inverter, MPPT charger, and 16kWh LiFePO4 battery in a single wall-mounted unit
• Dual 5500W MPPT inputs — connect up to 11kW of solar panels for rapid battery charging and direct AC power
• 10ms UPS transfer time — seamless backup power for entire home during grid outages
• IP65 outdoor-rated enclosure — install outdoors on exterior walls, garages, or carports without additional housing

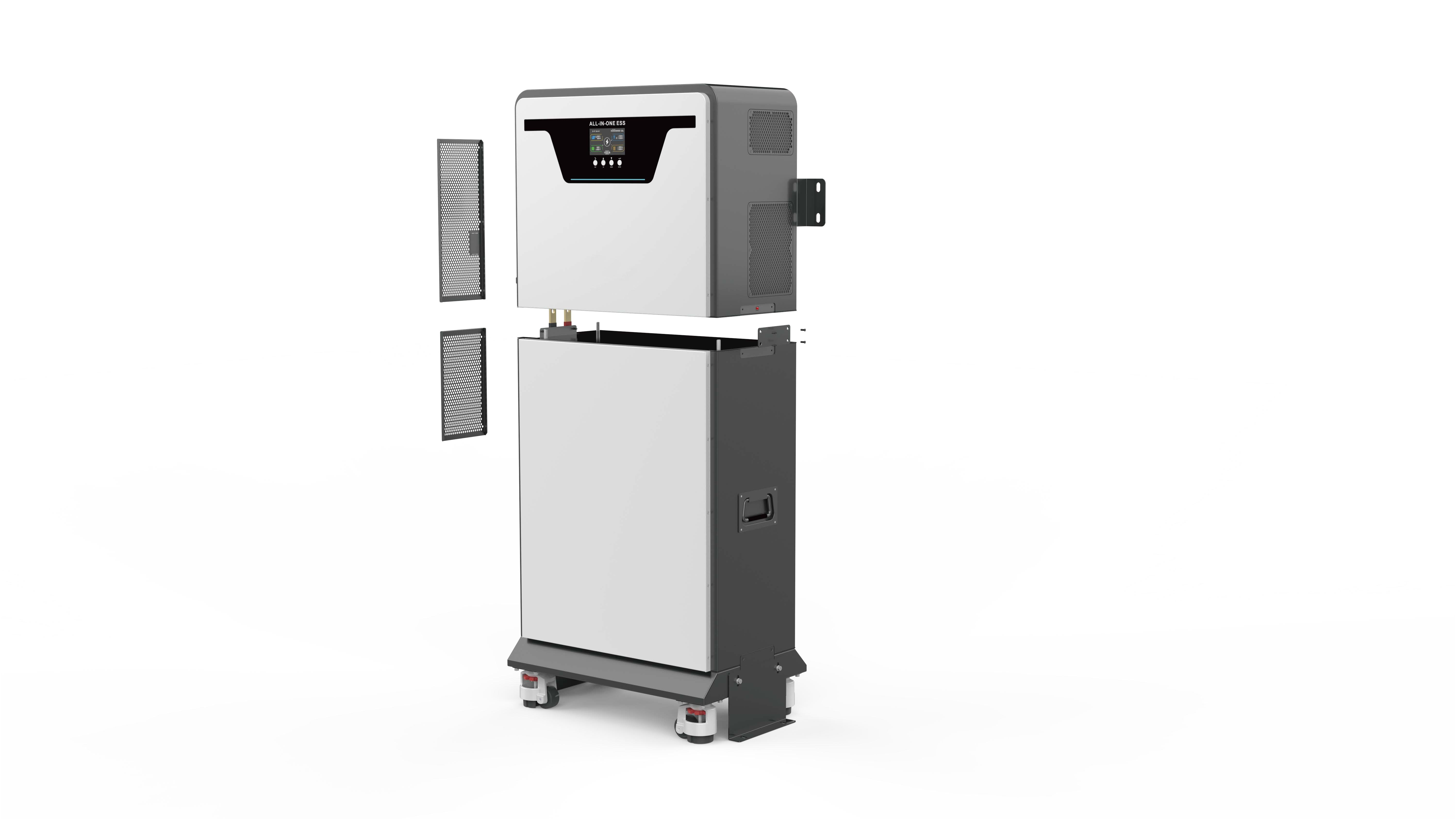

• Stackable expansion — add battery modules for increased storage capacity as energy needs grow
• Multi-protocol communication — WiFi/Bluetooth for homeowner monitoring, RS485/CAN for professional integration
• 10+ year design life with 6000+ cycle LiFePO4 cells — decades of reliable daily cycling

• Whole-Home Backup — Powers entire household during outages with 11kW continuous output
• Solar Self-Consumption — Store excess daytime solar for nighttime use, maximizing grid independence
• Time-of-Use Optimization — Charge from grid during off-peak rates, discharge during peak pricing periods
• Off-Grid Living — Complete energy independence for remote homes and cabins
• Small Commercial — Backup and peak shaving for small offices, shops, and clinics
• EV Charging Support — Buffer battery to reduce grid demand charges from EV charging

Zhejiang Jingying (JYINS) Electrical Co., Ltd., established in 1993, is a leading manufacturer with over 30 years of expertise in power inverters, solar charge controllers, energy storage systems, and renewable energy solutions. Our 500+ employee factory in Wenzhou, China, serves clients across 50+ countries with ISO9001/CE/SAA/RoHS certified products.

• 30+ years of manufacturing excellence since 1993
• ISO9001, ISO14001, ISO45001, CE, SAA, RoHS, FCC certified
• Dedicated R&D center with 30+ national patents
• OEM/ODM services with flexible MOQ and fast prototyping (7-10 days samples)
• Export to 50+ countries across 6 continents
• Professional pre-sales engineering support and after-sales service

Q: What's the difference between this and the portable G5000BW?

A: The RPS11+16 is a permanently installed wall-mounted system with 16kWh capacity and 11kW output for whole-home backup. The G5000BW is a portable 5kW/8-12kWh unit on wheels for mobile and smaller applications.

Q: How many solar panels can I connect?

A: With dual 5500W MPPT inputs, you can connect up to 11kW of solar panels total. This is approximately 16-28 panels depending on panel wattage (400W-695W).

Q: Can I add more batteries later?

A: Yes, the stackable design supports adding battery expansion modules. Contact JYINS for compatible expansion battery specifications and configuration support.

Q: Does it feed power back to the grid?

A: In hybrid grid-tied mode, excess solar can be exported to the grid where regulations allow. Off-grid mode operates independently. The system is configurable for both scenarios.
