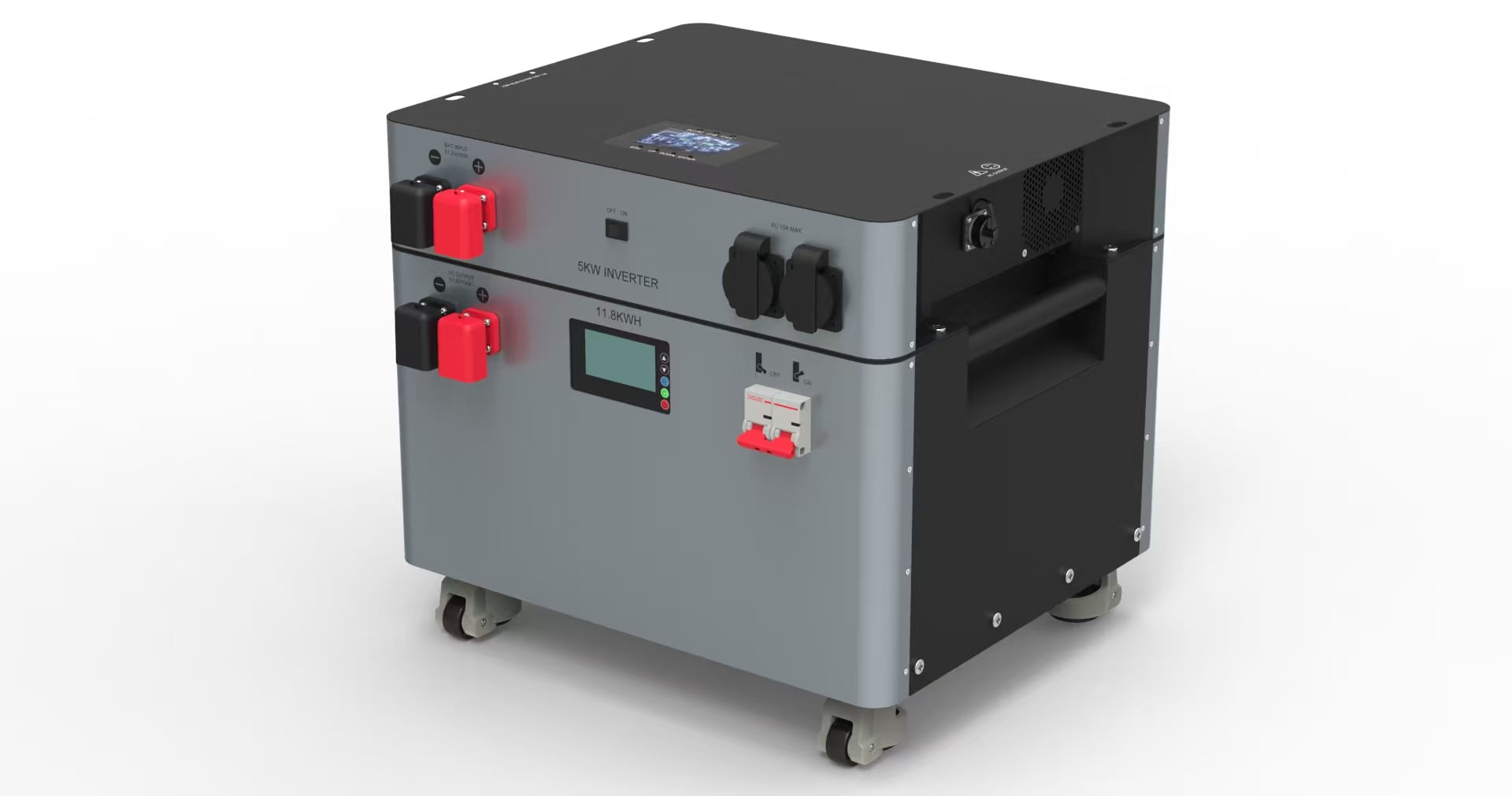

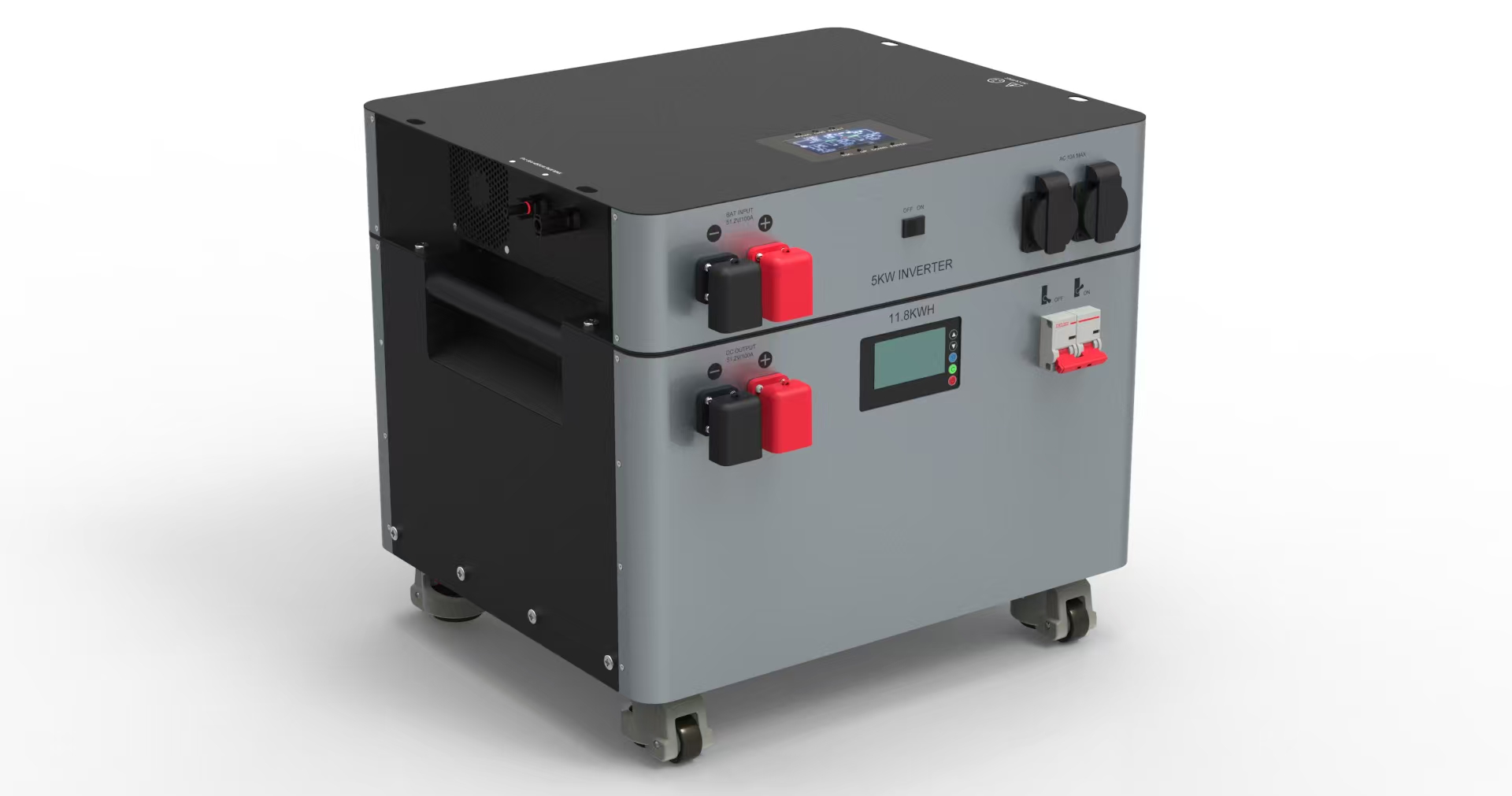

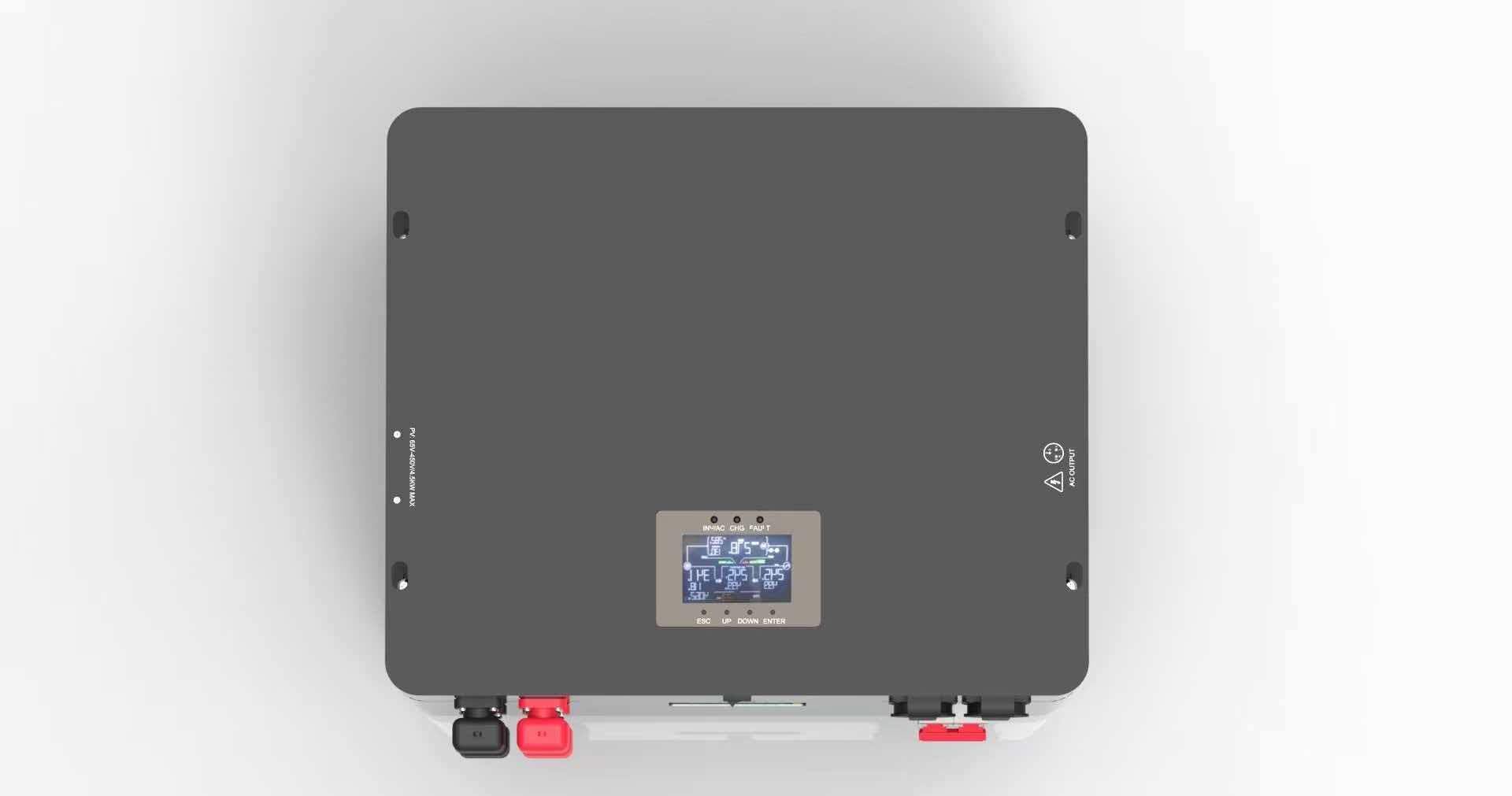

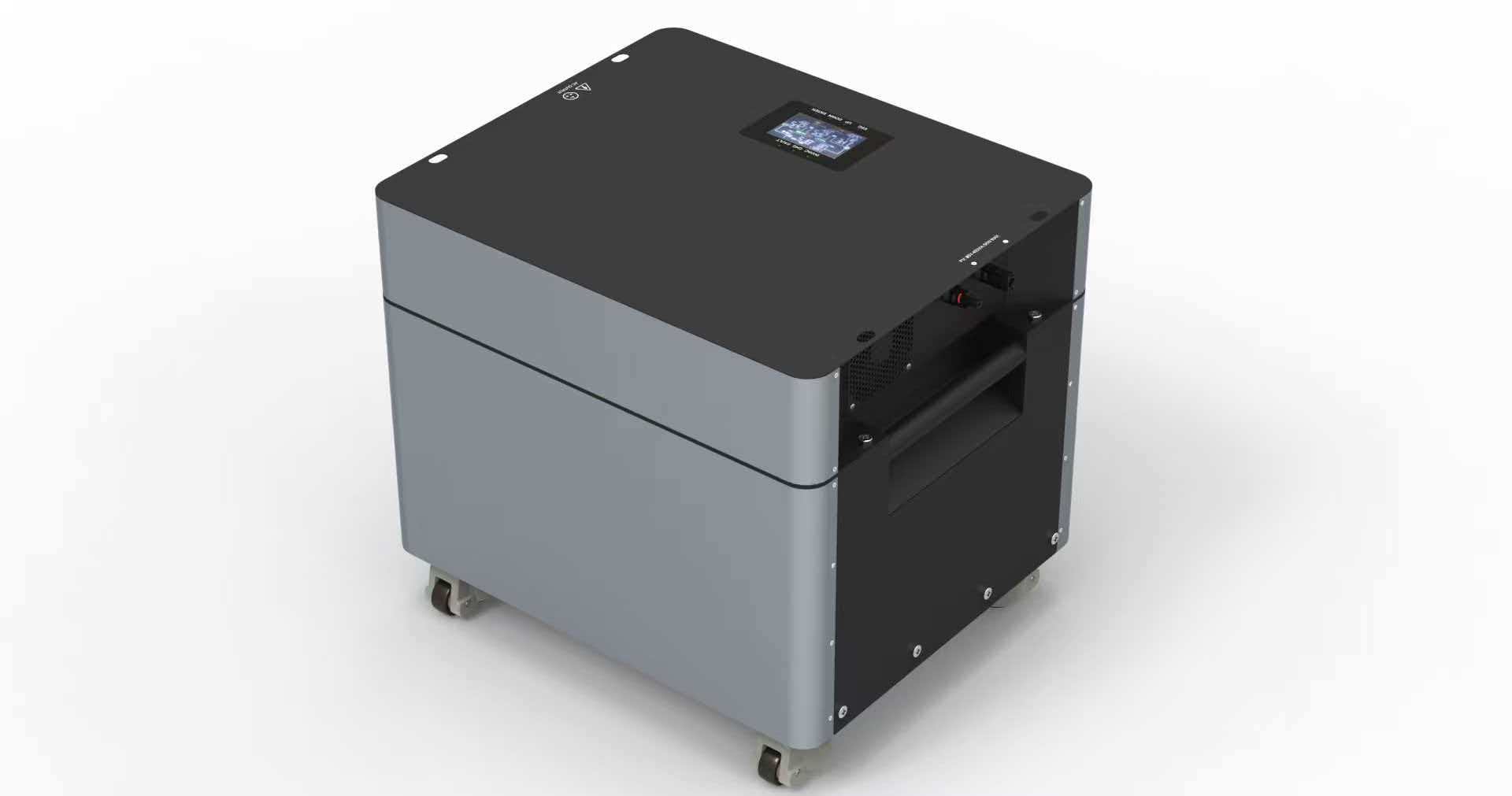

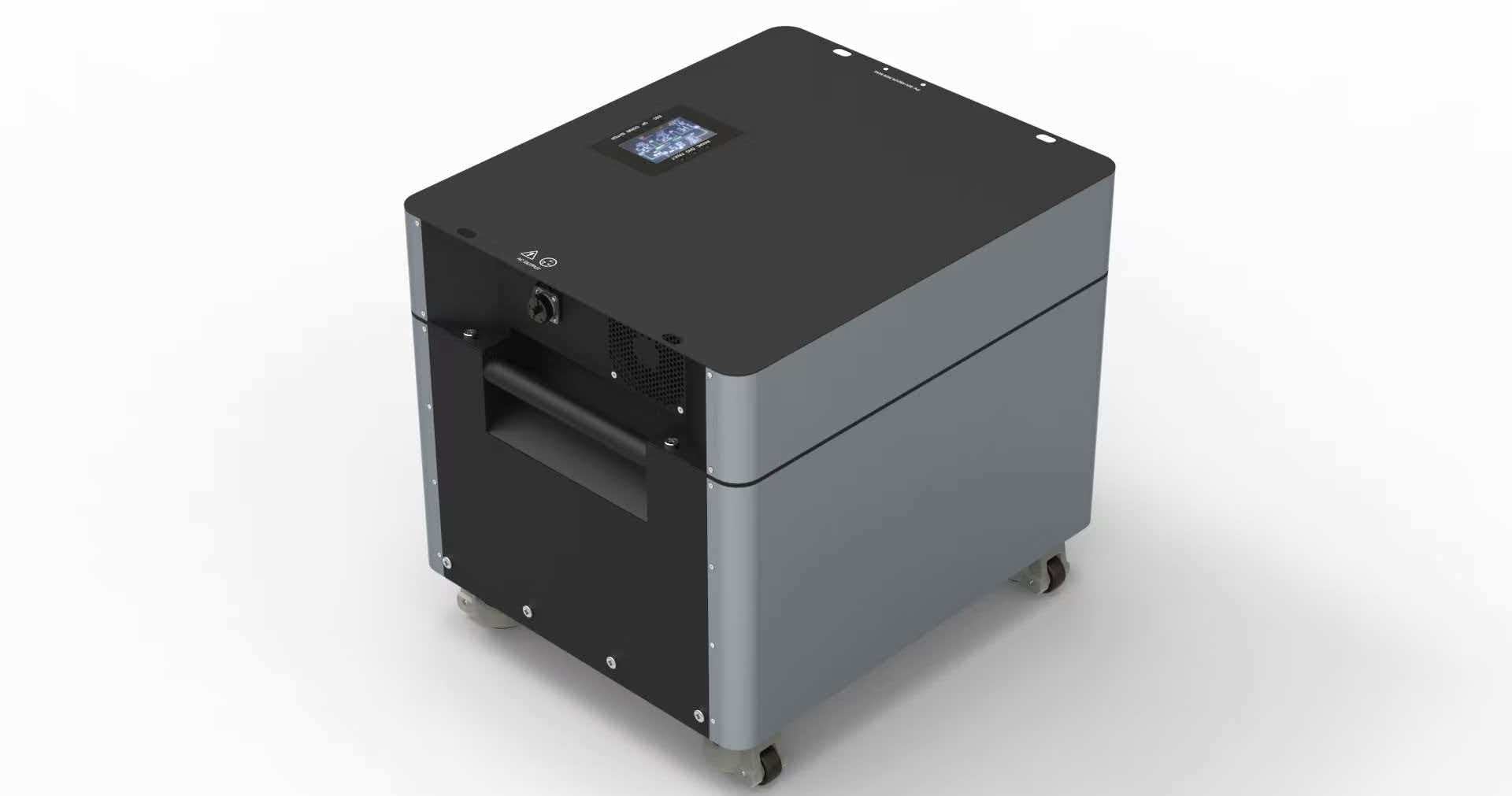

The JYINS G5000BW Portable Energy Storage System delivers 8–12KWh of reliable LiFePO4 battery storage in a compact, portable design. This all-in-one unit integrates a pure sine wave inverter, MPPT solar charge controller, and intelligent BMS for plug-and-play solar storage. With multiple output ports (AC, DC, USB, Type-C), it serves as a versatile emergency backup, off-grid power station, or commercial energy buffer. Wheel-mounted with a telescopic handle for easy mobility.
Parameter |
Specification |
Model |
G5000BW |
Battery Capacity |
8KWh / 10KWh / 12KWh (LiFePO4) |
Battery Voltage |
51.2V DC |
AC Output Power |
5000W Continuous |
AC Output Voltage |
110V/220V (Pure Sine Wave) |
Solar Charging |
Built-in MPPT, Max 4000W PV Input |
PV Input Voltage Range |
120–500V DC |
AC Charging |
Grid Charging Supported |
Output Ports |
4× AC Socket, 4× USB-A, 2× Type-C (PD 100W), 2× DC 12V, 1× Cigarette Lighter |
Cycle Life |
> 6000 Cycles (80% DOD) |
Display |
LCD Touchscreen with Real-time Monitoring |
Dimensions |
620 × 480 × 750 mm |
Weight |
~95 kg (8KWh) |
Mobility |
Wheels + Telescopic Handle |
Zhejiang Jingying (JYINS) Electrical Co., Ltd., established in 1993, is a leading manufacturer with over 30 years of expertise in power inverters, solar charge controllers, energy storage systems, and renewable energy solutions. Our 500+ employee factory in Wenzhou, China, serves clients across 50+ countries with ISO9001/CE/SAA/RoHS certified products.
Q: How long can the G5000BW power a typical home?
A: With 8KWh capacity: refrigerator (24h), lights (40h), router (80h), laptop (30+ charges). A 10KWh version extends this by 25%. Exact runtime depends on connected loads.
Q: Can I add more batteries later?
A: The G5000BW is a standalone unit. For expandable systems, consider the stackable 10kWh ESS models that support parallel battery expansion.
Q: How do I charge it with solar?
A: Simply connect solar panels to the built-in MPPT input (120-500V DC range). The system automatically manages charging while powering your loads.
Q: Is it safe for indoor use?
A: Yes, LiFePO4 chemistry is the safest lithium battery type — no thermal runaway, no toxic fumes. The unit has built-in BMS with overcharge/over-discharge/temperature protection.
