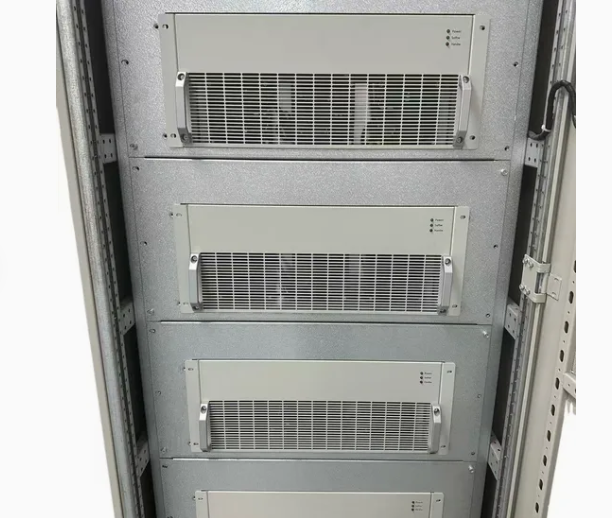

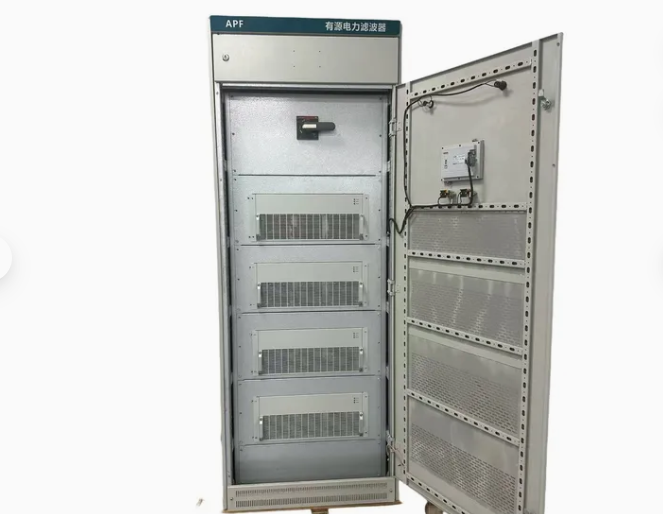

• Three-level topology
• Ultra-compact modular design
• Fastest switching frequency 25.6kHz
• Lowest Power Consumption ≤ 2%
• Leading Thermal Dissipation Technology
|
Rated Capacity |
50-900kva |
|
Phase System |
3P3W/3P4W |
|
Main Frequency |
50/60Hz ± 5% |
|
Circuit Topology |
Three-level |
|
Multiple Compensation Modes |
Harmonic, reactive power, three-phase load imbalance compensation |
|
Filter Range |
2 to 50 odd harmonics (by order or full compensation) |
|
Harmonic Filtering Rate |
≥98% |
|
Filtering Performance |
Typically, THDi ≤ 5% at rated loads |
|
Three-Phase Load Balancing Effect |
≤ 5% to mitigate negative and zero sequence currents |
|
Target Power Factor |
System PF>0.98 after compensation (atrated capacity) |
|
Neutral Linear Filtering Capability |
3 times the rated filter current (in case of 4-wire equipment) |
|
SVG Swithing/controlfrequency |
25.6kHz |
|
SVG Response Time |
≤5ms |
|
Capacitor Control Interface |
16 ways |
|
Capacitor Response Time |
≤1s |
|
system ActiveLoss |
≤2.5 perceant |
|
Output Current Limit |
Automatic output limitation within 100% of rated capacity |
|
Control Algorithm |
Intelligent FFT, ADALINE, Fast Fourierand Instantaneous Reactive Power Algorithms |
|
Controller |
DSP+FPGA |
|
Protection |
Hardware protection, software protection |
|
Control Connections |
Electrical Connections |
|
Human Machine Interface |
4.3" / 7" / 10" Touch TFT LCD HMI |
|
Noise |
<60db (<45db at low speed operation) |
|
Installation Method |
Module embedded (rack), wall-mounted, floor-mounted |
|
Protection Level |
IP43 maximum |
|
Cooling Method |
Speed controlled intelligent air-cooled PWM fan |
|
Colour |
RAL 7035 Industrial Grey/Black |
|
Ambient Temperature |
-20~55℃ |
|
Relative Humidity |
95% max, no condensation |
|
Installation Height |
Rated capacity at altitude ≤2000m, appropriate load shedding at altitude >2000m |
|
Qualification |
CE, IEEE61000, Type test report, ISO9001:2015 |
|
Conformity Standard |
IEEE 519, ERG5/4 |
|
Communication Protocol |
Adopts Modbus RTU remote communication protocol and TCP/IP protocol; Two channel RS485 and CAN bus, support mobile APP operation, support Ethernet |
