Introducing, the Jyins’s 800W Single Output SMPS 12V 66A LED AC DC Switching Power Supply, a powerful and reliable solution for your electrical needs. This high-quality power supply is designed to provide a steady and efficient power source for various applications, from LED lighting to industrial equipment.
With an output of 800W, this switching power supply can deliver a consistent 12V and 66A of power, making it ideal for demanding tasks that require a stable and strong electrical current. The built-in LED indicator ensures you can easily monitor the power supply's status, while the compact design allows for easy installation and integration into your setup.

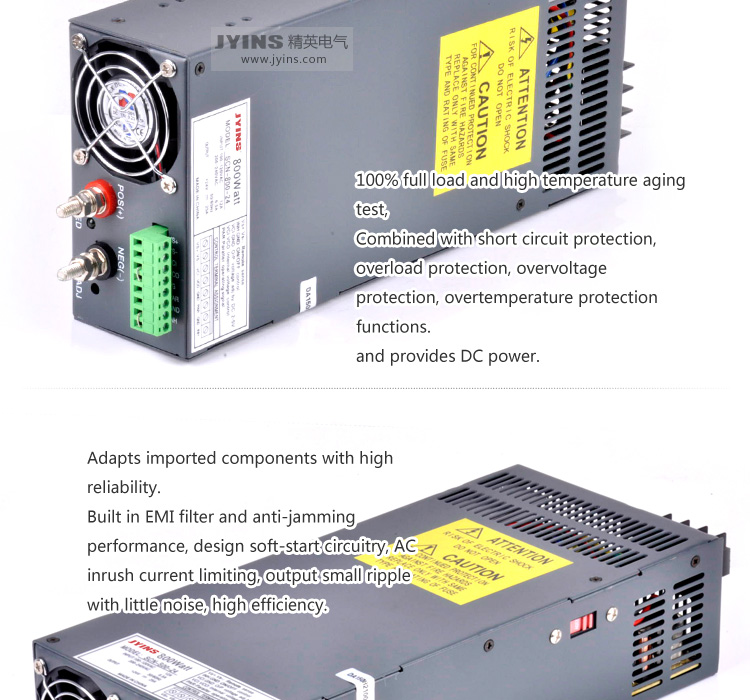

Whether you're looking to power up your LED lights or run industrial machinery, the Jyins’s 800W Single Output SMPS is up to the task. It is equipped with the latest safety features to protect against overloading, over-voltage, and short circuits, ensuring the safety of both your equipment and personnel.
Thanks to its high efficiency, this power supply helps reduce energy consumption and operating costs, making it a cost-effective choice for both residential and commercial applications. The durable construction and reliable performance of this power supply ensure that it will provide years of trouble-free operation.
The Jyins’s 800W Single Output SMPS is designed to meet the highest industry standards, ensuring a safe and reliable power supply solution for all your needs. Whether you're a professional electrician or a DIY enthusiast, this power supply is an excellent choice for powering your projects with confidence.
Don't settle for subpar power supplies that can't keep up with your demands. Choose the Jyins’s 800W Single Output SMPS 12V 66A LED AC DC Switching Power Supply for superior performance, efficiency, and reliability. Invest in a quality power supply that will meet your needs now and in the future

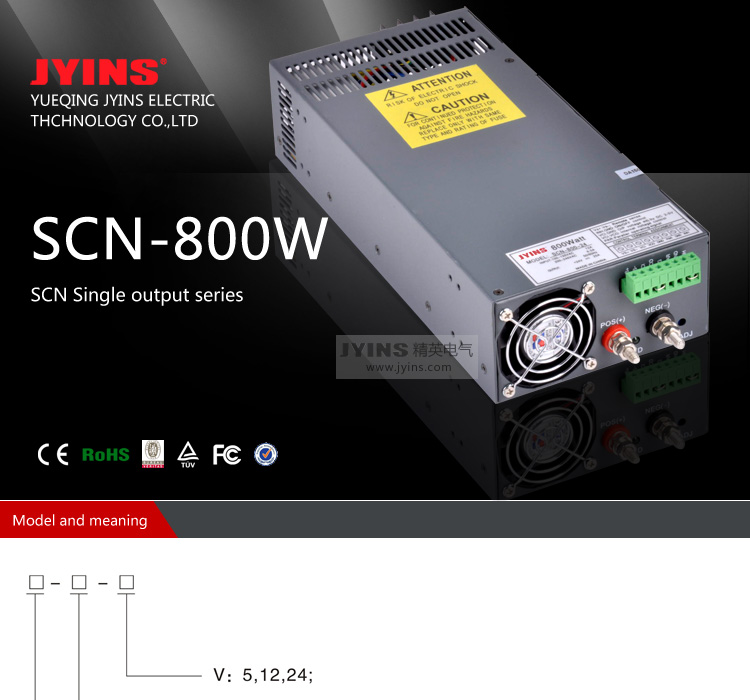

800W Single Output Smps 12V 66A Led Ac Dc Switching Power Supply
Model |
SCN-800-12 |
SCN- 800-24 |
SCN-800-36 |
SCN-800-48 |
DC output voltage |
12V |
24V |
36V |
48V |
Rated output current |
66A |
33A |
22A |
17A |
Output current rage |
0-66A |
0-33A |
0-22A |
0-17A |
Wave and noise |
150mVp-p |
150mVp-p |
180mVp-p |
180mVp-p |
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Load stablity |
±1% |
±0.5% |
±0.5% |
±0.5% |
Efficiency |
80% |
85% |
85% |
87% |
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
AC input voltage range |
AC100~240V 47~63Hz;240~370VDC |
|||
Input current |
88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC |
|||
AC INnrush current |
Cold-start current 45A/230V |
|||

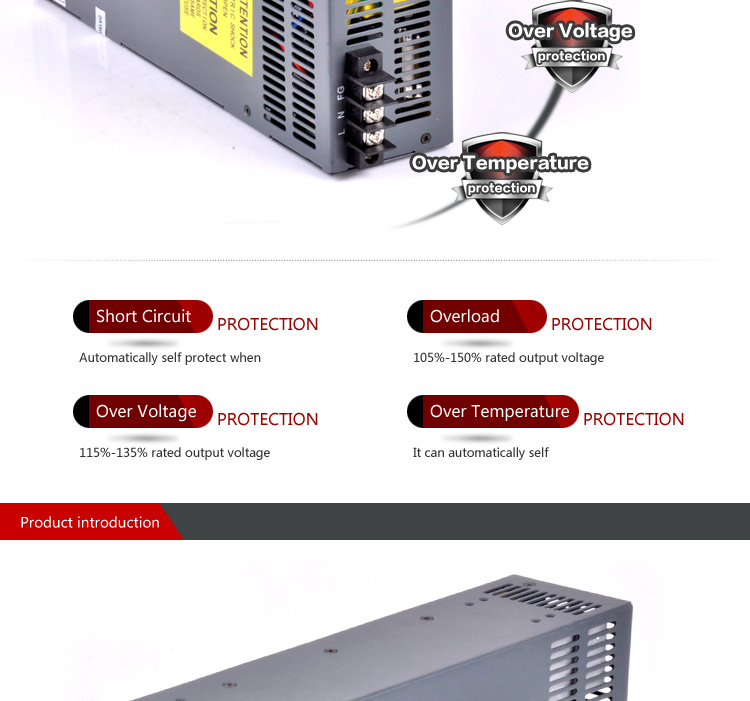

Overload proctection |
105%~150% Tpye:Foldback current limiting Reset: auto recovery |
|||
Setup rise hold up time |
200s,100ms,30ms |
|||
Withstand voltage |
Input and output internal 1.5KVAC, Input and enclosure 1.5KVAC, Output and enclosure 0.5KVAC |
|||
Isolation resistance |
Input and output internal Input and enclosure, Output and enclosure 500VDC/100MΩ |
|||
Working temperature |
-10°C~+50°C |
|||

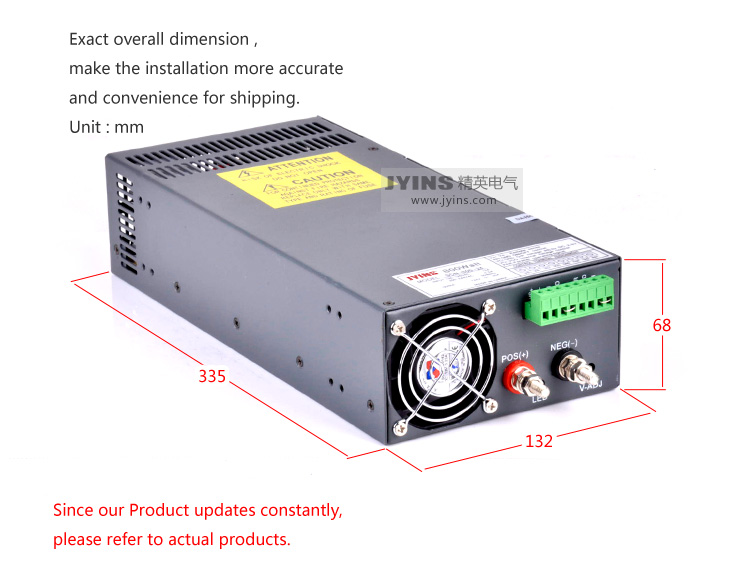

Overall dimension |
291*132*68mm |
|||
Safety standards |
Meet ULGB4943 UL60950 EN60950 requirement |
|||
EMC standards |
Meet EN55022 GB9254 class A requirement |
|||
Weight |
2.68Kgs |
|||
