Product Description

Parameter / Model	JH1K-Plus	JH1.5K-Plus	JH3K-Plus	JH5K-Plus
Rated Power	1000VA/1000W	1500VA/1500W	3000VA/3000W	5000VA/5000W
INPUT
Voltage	230VAC	230VAC	230VAC	230VAC
Selectable Voltage Range	170-280VAC (for personal computers)	170-280VAC (for personal computers)	170-280VAC (for personal computers)	170-280VAC (for personal computers)
	90-280VAC (for home appliances)	90-280VAC (for home appliances)	90-280VAC (for home appliances)	90-280VAC (for home appliances)
Frequency Range	50Hz/60Hz (Auto sensing)	50Hz/60Hz (Auto sensing)	50Hz/60Hz (Auto sensing)	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC±5%	230VAC±5%	230VAC±5%	230VAC±5%
Surge Power	2000VA	3000VA	6000VA	10000VA
Efficiency (Peak)	90%	93%	93%	93%
Transfer Time	10ms (for personal computers)	10ms (for personal computers)	10ms (for personal computers)	10ms (for personal computers)
	20ms (for home appliances)	20ms (for home appliances)	20ms (for home appliances)	20ms (for home appliances)
Wave Form	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC
Overcharge Protection	15.0VDC	30VDC	30VDC	60VDC
Maximum Charge Current	10A/20A	20A/30A	20A/30A	10A/20A/30A/40A/50A/60A
SOLAR CHARGER & AC CHARGER
Charging Current	50A	50A	50A	50A
Maximum PV Array Open Circuit Voltage	40VDC	80VDC	80VDC	105VDC
PV Range @ Operating Voltage	15-18VDC	30-32VDC	30-40VDC	60-72VDC
Standby Power Consumption	1W	2W	2W	3W
PHYSICAL
Dimension D×W×H (mm)	240×327.6×110	368×272×100	368×272×100	467.6×295×120
Net Weight (kg)	4.5kg	5.5kg	6.9kg	9.8kg
ENVIRONMENTAL
Humidity	5% to 95% Relative Humidity (Non-condensing)	5% to 95% Relative Humidity (Non-condensing)	5% to 95% Relative Humidity (Non-condensing)	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C to 55°C	0°C to 55°C	0°C to 55°C	0°C to 55°C
Storage Temperature	-15°C to 60°C	-15°C to 60°C	-15°C to 60°C	-15°C to 60°C

Match Different Battery Charging Requirements,

BMS manage system,Lead-Acid Battery,Gel Battery,Lithium Battery

Multiple usage scenarios with distinct features

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-2

This is a showcase of the versatile application scenarios for our hybrid inverter:

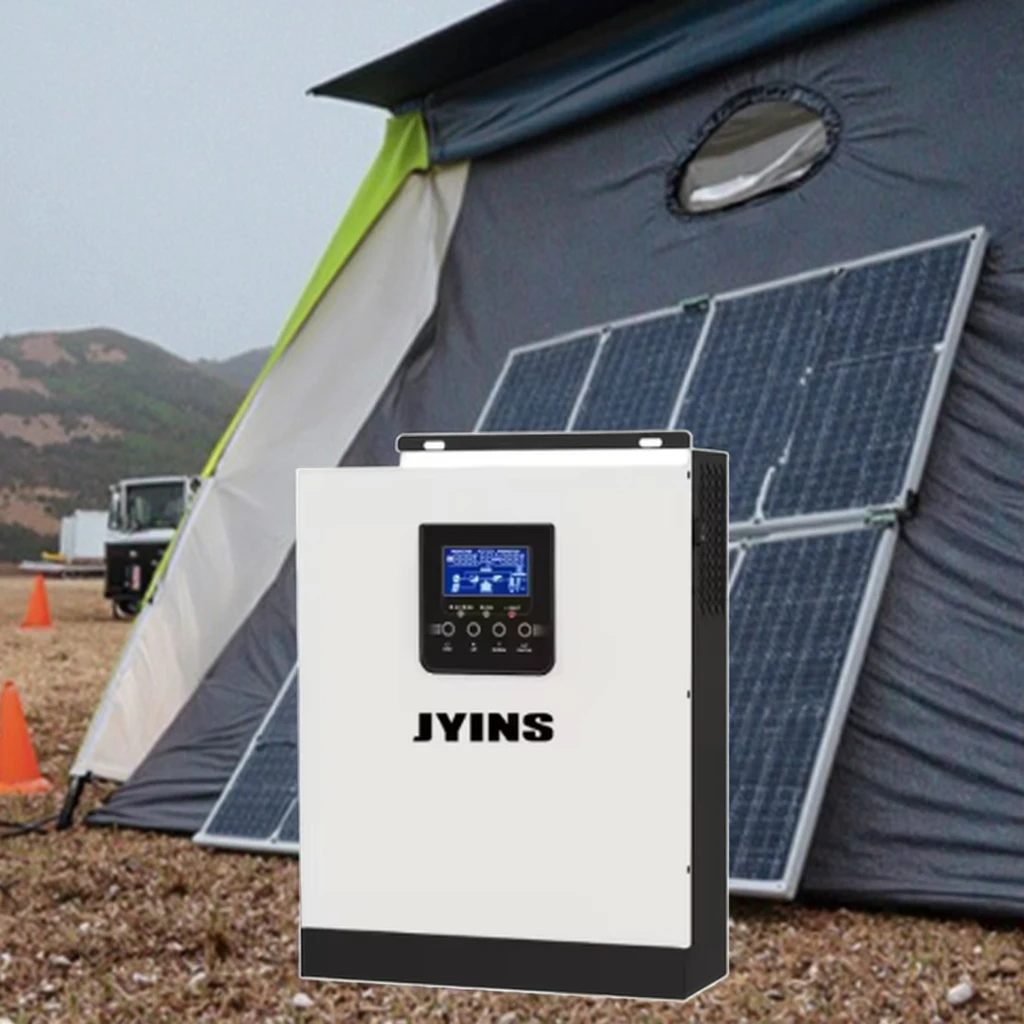

It powers residential PV systems (paired with homes & solar panels), runs household appliances like air conditioners, enables power management for floating solar energy storage stations, supports solar street lighting, delivers emergency power for outdoor camping, and meets energy needs for RV travels.

With exceptional adaptability, our hybrid inverter covers residential, commercial, and outdoor scenarios—delivering reliable support for power conversion and energy storage across all use cases.

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-3

Features：

ECO energy-saving
Lightweight design
High voltage output
Stable voltage output
98% output rate
Battery free operation

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-4

Specification

Input Voltage	12V/24V/48V
Output Voltage	230V
Output Current	6.5A/13A
Output Frequency	50hz/60hz

Packing & Delivery

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-5

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-6

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

JYINS INVERTER:

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-7

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-8

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-9

product 1kw 15kw 3kw 5kw hybrid solar inverter solar charge controller with dual outputs 12v 24v 48v high quality-10

Since our founding in 1993, Hisolar has been at the forefront of clean energy innovation,delivering premium energy storage
systems, inverters and solar solutions worldwide. Our internationally certified products(CE/TÜV/ISO 9001/SAA) empower homes, businesses and remote communities across 50+ countries with reliable, eco-friendly power solutions for residential, commercial and off-grid applications. What sets us apart is our unwavering commitment to excellence. Through rigorous quality control systems and flexible OEM/ODM solutions, we transform cutting-edge technology into dependable energy products that deliver stable performance even in extreme operating conditions.

Our dedicated R&D team continuously innovates to meet evolving market demands. More than just a manufacturer, we're a mission-driven partner in the global energy transition. For three decades, our "Green Energy, Efficient Future" philosophy has guided every innovation. From household systems to large-scale projects, we provide complete energy solutions while maintaining the highest standards of environmental responsibility - helping build a cleaner, more sustainable world for generations to come.

FAQ

Q1: Why you should choose us?

More than 30 years Electrical Equipment factory experiences Professional R & D team and sales team
Provide OEM/ODM services Qualified product and competitive price Delivery in time Sincerely services

Q2: How is your after-sale service?

We provide 1-2years warranty We will repair the PCB or provide new one

Q3: What kind of certification you have?
ISO9001,ISO14001,ISO45001,CE,SAA,Rohs,FCC and so on

Q4: Delivery time:

Standard products could be delivered within 10 days;

Q5.Can I have a sample order?

Yes, we welcome sample order to test and check quality

Hisolar (Zhejiang JYINS Electrical Co., LTD.),specializing in the production of power inverters, hybrid solar inverter, customized inverter PCB boards, and other clean energy solutions.
