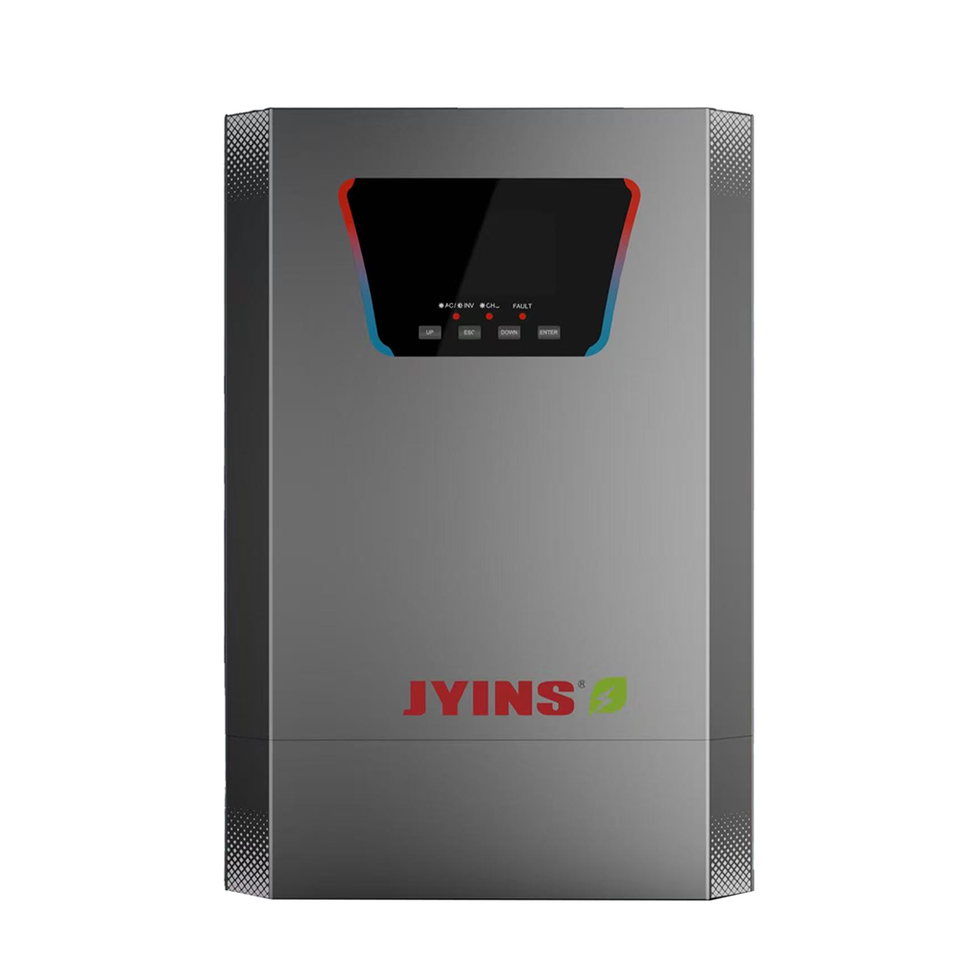

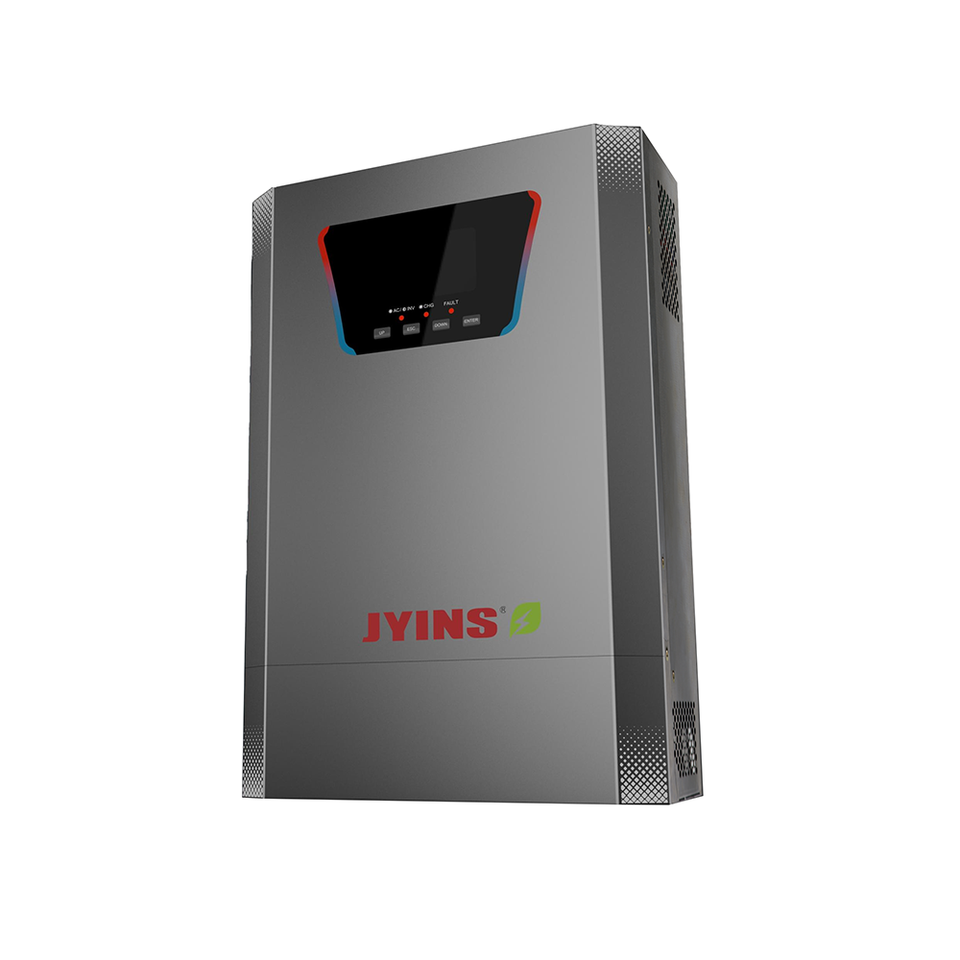

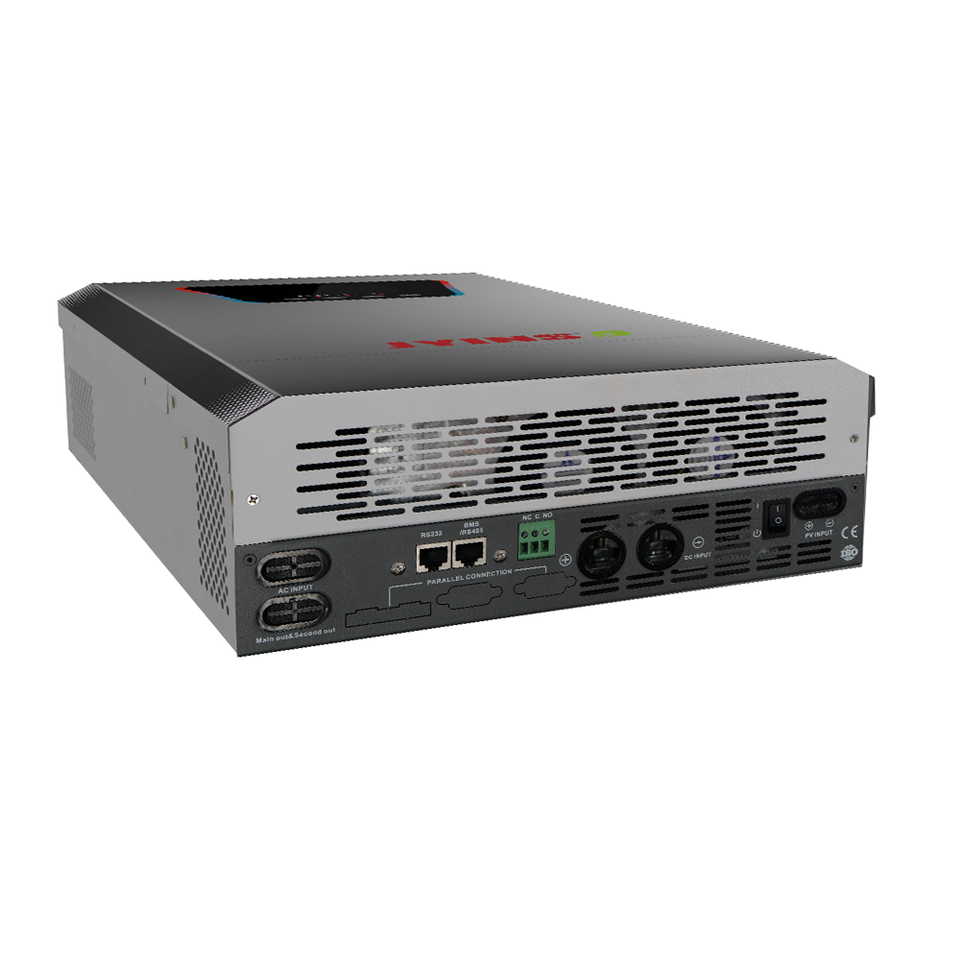

JYINS hybrid solar inverter converter AC DC 12V/24vV48V 110V/220V/230V/380V home use with battery set

JYINS hybrid solar inverter converter AC DC 12V/24vV48V 110V/220V/230V/380V home use with battery set

"CE/TÜV Certified Hybrid Inverter: Lightning Protection + Built-in Circuit Breaker"
"30-Year Expertise: Lightning-Proof Hybrid Inverter with Circuit Breaker & Low Defect Rate"
"OEM/ODM Customizable Hybrid Inverter - Lightning Protection + Circuit Breaker Tailored to Needs"
"EMC Class B Hybrid Inverter: Lightning Shield + Circuit Breaker for Interference-Free Operation"
"5-Year Warranty Hybrid Inverter - Lightning Protection & Built-in Circuit Breaker for Longevity"

Product Description

Type 1: Line-Frequency/Low-Frequency Hybrid Inverters

Power range: 1kW–160kW
Three-phase configuration for models above 40kW
Supports split-phase/phase splitting functionality
Enables paralleling operation and grid connection to feed surplus electricity into the power grid

Type 2: High-Frequency Inverters

Power range: 1kW–13kW
Supports split-phase/phase splitting functionality
Enables paralleling operation and grid connection to feed surplus electricity into the power grid

Key Specifications & Services

Battery voltage range: 12V DC to 600V DC
B2B procurement: Customization services available

Key attributes

Output Type

Single

Inverter Efficiency

92%

Place of Origin

Zhejiang, China

Model Number

JYH-1.6KW/3KW/4KW/6.2KW/11KW

Brand Name

JYINS

Input Voltage

110V/220/230/240VAC

Output Voltage

220/230/240VAC±5%

Output Current

100A

Output Frequency

50/60Hz±0.1%

Size

495*312*146mm

Type

DC/AC Inverters

Rated Power

1.6KW/3KW/4KW/6.2KW/11KW

Input Formation

L+N+PE

Output Wave

Pure Sine Wave

Rated Voltage

24V/48V

LCD

Can display operating mode/load/input/output

Operating Temperature

-10℃~50℃

Storage Temperature

-15℃~60℃

Noise

s50db

L*W*H(mm)

495*312*146mm

Output Frequency

50/60Hz±0.1%

Hisolar (Zhejiang JYINS Electrical Co., LTD.),specializing in the production of power inverters, hybrid solar inverter, customized inverter PCB boards, and other clean energy solutions.
