Product Description

Certification	RoHS, ISO, CE
Colour	Grey Black
Service	ODM / OEM
Voltage	200V 220V
Operating Frequency	50Hz ±5%
Circuit Topology	3p4w 3p3w
Transport Package	Export-Grade Wooden Case
Specification	450X486X160
Trademark	Hisolar
Origin	China
HS Code	8543709990
Production Capacity	5000 Sets/ Month

Product Description

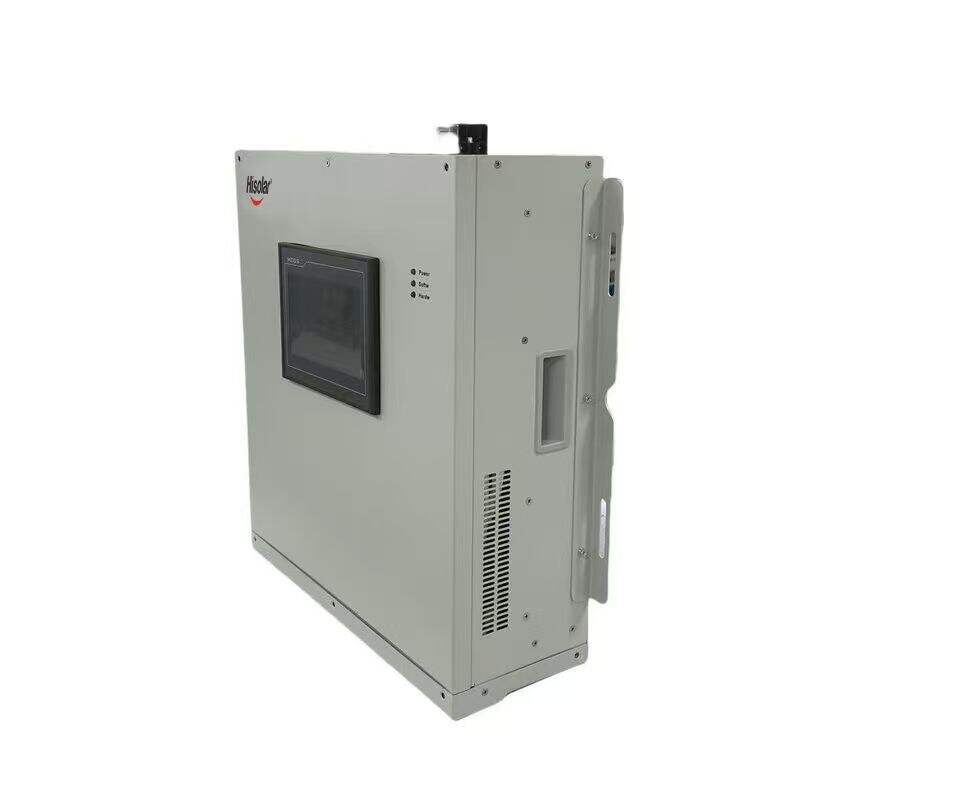

Active Harmonic Filter

This device has various compensation modes (harmonic, reactive power, three-phase unbalance and capacitor switching control), which can simultaneously make the said various compensation, and compensation capacity for harmonic, reactive power, and three-phase unbalance can also be set freely, comprehensively solving the problem of power quality of the low-voltage power distribution side

Specification

Optimal Power Quality Control

• Continuous power factor correction
• Capacitive & inductive reactive power compensation
• Accurate PF maintenance -1.0 ≤ CosΦ ≤ 1.0
• Three-phase load unbalance less than 5%
• Reduction of neutral current

Leading Edge Technology

• Three-level topology
• Ultra-compact modular design1
• Fastest switching frequency 25.6kHz

• Lowest Power Consumption < 2%
• LeadingThermal Dissipation Technology

Harmonic Filter

• Adaptive Algorithm (ADALINE)
• THDi less than 5% at rated loads
• Up to 98% filtration efficiency
• Full response time less than 5ms
• On-demand or fully compensated

Technical Parameter

Drawings & Dimensions

After Sales Service

Standard Warranty: 15 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-line operation/maintenance training.
