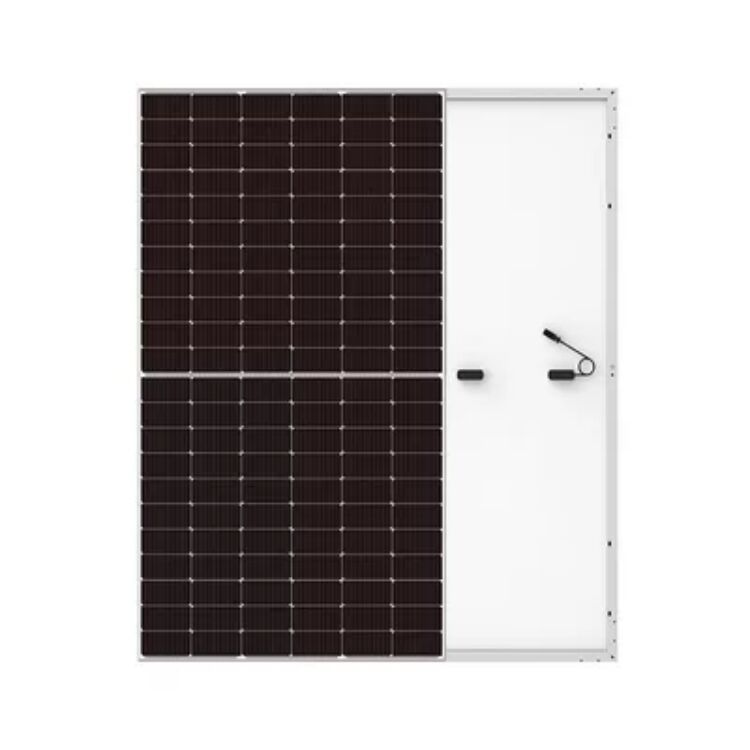

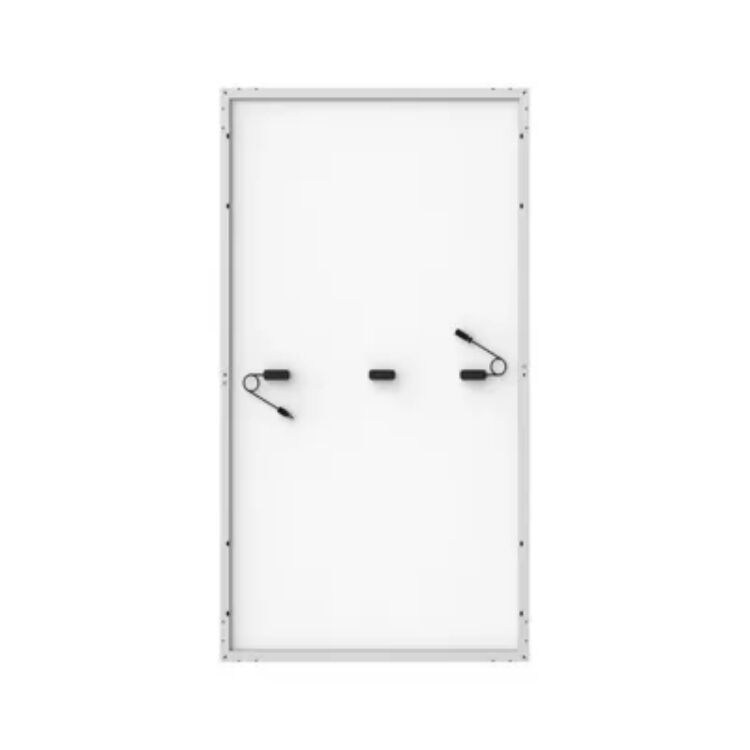

485w Mono Solar Panel
yacht Mono Solar Panel
485w solar panels 37.96V
| Model | LS-485M | LS-490M | LS-495M | LS-500M | LS-505M |
| Maximum Power(Pmax) | 485W | 490W | 495W | 500W | 505W |
| Maximum Power Voltage(Vmp) | 37.96V | 38.11V | 38.26V | 38.41V | 38.56V |
| Maximum Power Current(Imp) | 12.78A | 12.86A | 12.94A | 13.02A | 13.10A |
| Open-Circuit Voltage(Voc) | 45.12V | 45.27V | 45.42V | 45.57V | 45.72V |
| Short-Circuit Current(Isc) | 13.68A | 13.76A | 13.83A | 13.90A | 13.96A |
| Power Tolerance(Positive) |
0——+3%
|
||||
| Module Efficiency STC | 20.42% | 20.64% | 20.85% | 21.06% | 21.27% |
| Operating Temperature Range | -40°C - 85°C | ||||
| Maximum System Voltage | 1500V DC-(H) | ||||
| Cell Type | Mono-crystalline PERC,182x91mm | ||||
| Cell number | 132(6x22)(Half-Cell) | ||||
| Product Dimension(mm) | 2094*1134*35mm(82.44*44.65*1.38inches) | ||||
| Weight(kgs) | 26.3kg | ||||
| Front Glass | 3.2mm High Transmission Tempered Glass(0.13inches) | ||||
| Frame Type | Silver,Anodized Aluminum Alloy | ||||
| Protection Class | IP68 | ||||
| Connector Type | MC4 | ||||
| Output Cables | 4 mm²,Length:1300mm | ||||
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 62 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 11 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 682 |
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Where are your goods exported?
A:We can export to all over the world.
Q5:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.
Q6:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
5)Strong radiation resistance:
Monocrystalline silicon solar cells have strong radiation resistance, which can resist radiation such as ultraviolet and infrared rays.
