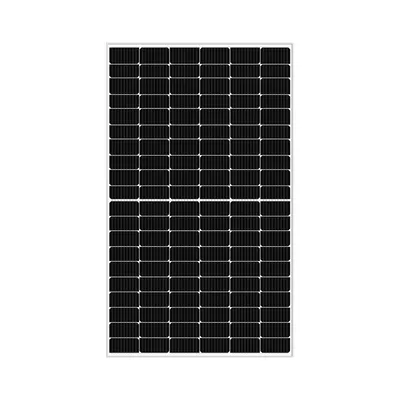

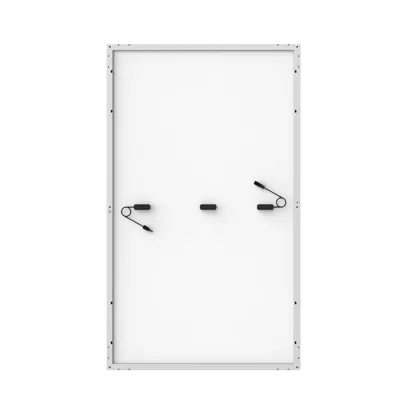

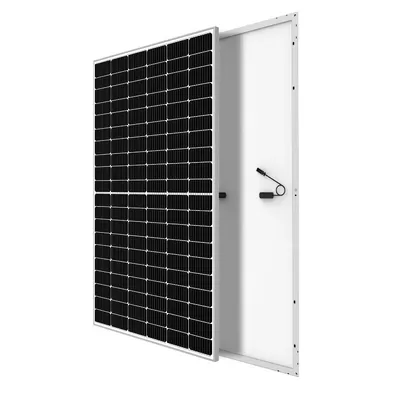

430W high efficiency monocrystalline solar cells
460w high efficiency monocrystalline solar cells
mono cell solar panel 6 x 20 cell
| Model | LS-430M | LS-435M | LS-440M | LS-445M | LS-450M | LS-455M | LS-460M |
| Maximum Power(Pmax) | 430W | 435W | 440W | 445W | 450W | 455W | 460W |
| Maximum Power Voltage(Vmp) | 33.82V | 34.07V | 34.32V | 34.56V | 34.81V | 35.06V | 35.31V |
| Maximum Power Current(Imp) | 12.71A | 12.77A | 12.83A | 12.88A | 12.93A | 12.98A | 13.03A |
| Open-Circuit Voltage(Voc) | 40.5V | 40.80V | 41.10V | 41.30V | 41.50V | 41.70V | 41.90V |
| Short-Circuit Current(Isc) | 13.5A | 13.55A | 13.60A | 13.65A | 13.70A | 13.75A | 13.80A |
| Power Tolerance(Positive) |
0-+3%
|
||||||
| Module Efficiency STC | 19.85% | 20.08% | 20.31% | 20.55% | 20.78% | 21.01% | 21.24% |
| Operating Temperature Range | -40°C - 85°C | ||||||
| Maximum System Voltage | DC 1500V | ||||||
| Cell Type | Mono-crystalline PERC,182x91mm | ||||||
| Cell number | 120(6x20)(Half-Cell) | ||||||
| Product Dimension(mm) | 1910*1134*35mm(75.20x44.65x1.38 inches) | ||||||
| Weight(kgs) | 23.5kg | ||||||
| Front Glass | 3.2mm High Transmission Tempered Glass(0.13 inches) | ||||||
| Frame Type | Silver/Black,Anodized Aluminum Alloy | ||||||
| Protection Class | IP68 rated | ||||||
| Connector Type | MC4 | ||||||
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm | ||||||
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.05%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.29%/℃ | Pieces per pallet | 62 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 12 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 744 |
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Where are your goods exported?
A:We can export to all over the world.
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
5)Strong radiation resistance:
Monocrystalline silicon solar cells have strong radiation resistance, which can resist radiation such as ultraviolet and infrared rays.
