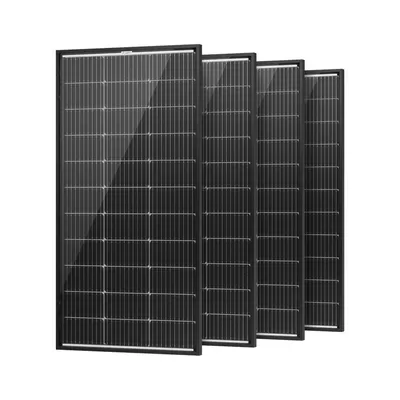

The JYINS 415W Bifacial Solar Panel leverages advanced double-sided cell technology to capture sunlight from both the front and rear surfaces, delivering up to 25% additional energy gain from reflected light. Featuring 132 half-cut monocrystalline cells with PERC technology, this panel achieves 21.3% module efficiency. The transparent backsheet allows light to reach the rear side, making it ideal for ground-mount, carport, and flat-roof installations where reflected irradiance is available. Certified to IEC 61215/61730 with a 25-year linear power warranty.
Parameter |
Specification |
Model |
LS-B415M |
Maximum Power (Pmax) |
415W |
Module Efficiency |
21.3% |
Cell Type |
Monocrystalline PERC Half-Cut Bifacial |
Cell Configuration |
132 Cells (6 x 22) |
Maximum Power Voltage (Vmp) |
38.5V |
Maximum Power Current (Imp) |
10.78A |
Open Circuit Voltage (Voc) |
46.2V |
Short Circuit Current (Isc) |
11.45A |
Bifaciality Factor |
70% ± 5% |
Front Glass |
3.2mm Tempered Anti-Reflective Coated |
Rear Side |
Transparent Backsheet (Light-Transmissive) |
Frame |
Silver Anodized Aluminum |
Junction Box |
IP68 Rated with MC4 Connectors |
Dimensions |
2094 x 1038 x 35 mm |
Weight |
25.5 kg |
Max System Voltage |
1500V DC |
Warranty |
25-Year Linear Power Output Warranty |
Zhejiang Jingying (JYINS) Electrical Co., Ltd., established in 1993, is a leading manufacturer with over 30 years of expertise in power inverters, solar charge controllers, energy storage systems, and renewable energy solutions. Our 500+ employee factory in Wenzhou, China, serves clients across 50+ countries with ISO9001/CE/SAA/RoHS certified products.
Q: How much extra power does the bifacial design produce?
A: Typically 5-25% additional energy depending on ground albedo (reflectivity). White surfaces: 15-25% gain. Grass/soil: 5-10% gain. The gain is automatically calculated in total energy output.
Q: Can I install bifacial panels on a regular roof?
A: Bifacial panels perform best with space behind them for reflected light. On dark flat roofs, gain is minimal (3-5%). For sloped residential roofs, standard monofacial panels may be more cost-effective.
Q: Do they need special mounting?
A: Standard mounting compatible, but for maximum bifacial gain use mounting that minimizes rear shading (edge clamps, elevated rails). Torque tubes for trackers are ideal.
Q: What's included in the 25-year warranty?
A: Year 1: 98% output. Year 2-25: 0.45% annual degradation. Guaranteed 87% output at year 25. Product workmanship warranty: 12 years.
