340w monocrystalline solar panel-1

Solar Panel

Home >  Products >  Solar Panel

Products

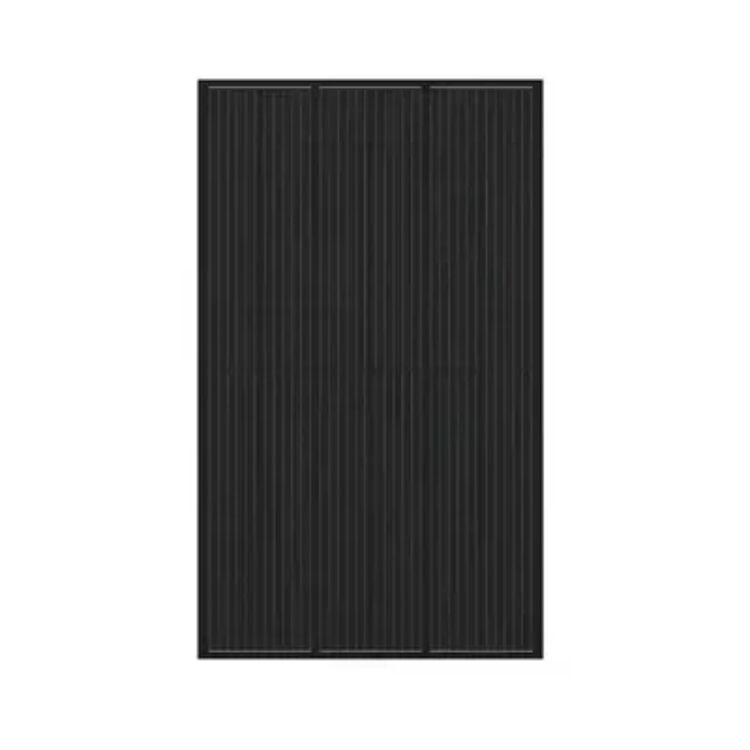

340W monocrystalline solar panel

340W monocrystalline solar panel

1000V single-crystalline solar panels

IP65 monocrystalline silicon battery

Brand:
Jyins
Appurtenance:
Product Description
Model LS-340M
Maximum power (Pmax) 340W
Maximum power supply voltage (Vmp) 37.5V
Maximum power current (Imp) 9.65A
Open-circuit voltage (Voc) 46.35V
Short - circuit current (Isc) 9.85A
Power tolerance 3%
Cell types Monocrystalline silicon
Contract size (mm) 1950*992*40mm
Weight(Kg) 23Kg
Protection level IP65
Maximum system voltage 1000V
Temperature range -40℃~85℃
Component efficiency STC 17.25%
Cell quantity 72(6x12)
Front glass 3.2mm high-transparency tempered glass
Frame type Anodized aluminum alloy
Connector type MC4
Output cable 4 mm²,Length:900mm
question and answer

Q1: How long is the warranty period of the solar panels?
Answer: 5-year warranty. If you have any questions about our quality during the use, you can contact us at any time.


Q2: Do you accept OEM/ODM orders?
Answer: We accept OEM/ODM orders. Your inquiries are welcome.


Q3: Can I have samples for testing? How long is the delivery cycle for sample orders?
Answer: Yes, of course. The sample preparation time is 7 - 10 days.


Q4: Are you a manufacturer or a trading company?
Answer: We are a manufacturer. Our factory is located in Yuyao, Ningbo. You are welcome to visit if you like.


Q5: Where do you export your goods?
Answer: We can export to all over the world.


Q6: Can we customize solar panels?
Answer: Yes, of course. We can design and produce according to your needs.

product character
  1. High photoelectric conversion efficiency:
    The photoelectric conversion efficiency of monocrystalline silicon solar cells is approximately 15%, with the highest reaching 24%. It has the highest photoelectric conversion efficiency among various types of solar cells currently.
  2. Low production cost:
    The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
  3. Long service life:
    Monocrystalline silicon solar cells have a relatively long service life, generally about 20 years, with the maximum reaching 25 years.
  4. Good low - light performance:
    Monocrystalline silicon solar cells can also perform well under low - light conditions, and are suitable for applications such as solar lights and solar lawn lights
