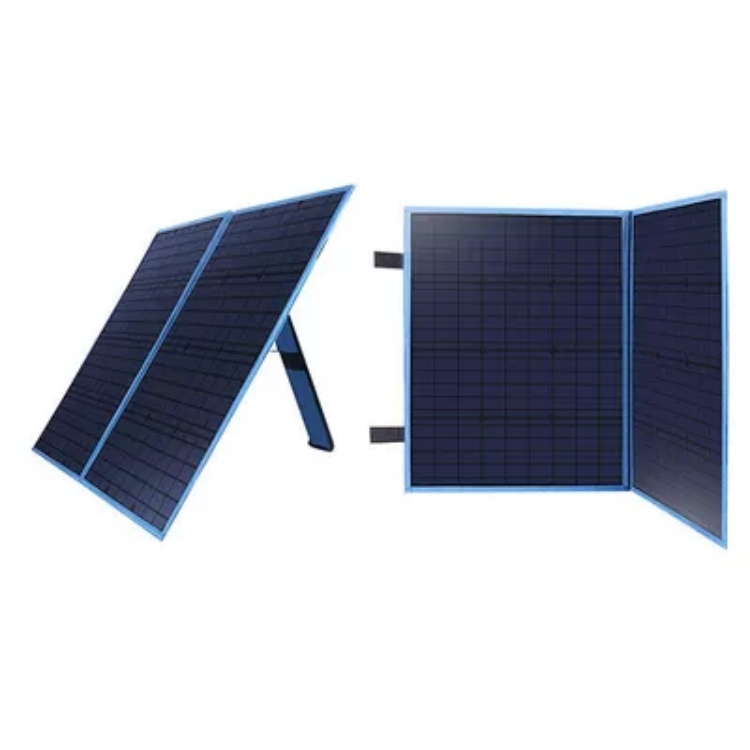

The JYINS 100W Solar Blanket (LS-NB100M) is a lightweight, portable, and durable solar charging solution for outdoor adventures. Constructed with high-efficiency monocrystalline cells laminated in weather-resistant PET polymer with Oxford fabric backing, it delivers 100W of clean solar power at 18.4V for portable power stations, 12V batteries, and USB devices. Weighing just 3.7 kg and folding to a compact 540x570x15mm, it includes built-in eyelets for versatile mounting on tents, RVs, and backpacks. IP65 rated for reliable performance in rain, dust, and harsh outdoor conditions.
Parameter |
Specification |
Model |
LS-NB100M |
Maximum Power (Pmax) |
100W (2 x 50W Panel Sections) |
Maximum Power Voltage (Vmp) |
18.4V |
Maximum Power Current (Imp) |
5.44A |
Open Circuit Voltage (Voc) |
22.8V |
Short Circuit Current (Isc) |
5.81A |
Power Tolerance |
+3% |
Cell Type |
Monocrystalline Silicon Flexible Cells |
Protection Class |
IP65 |

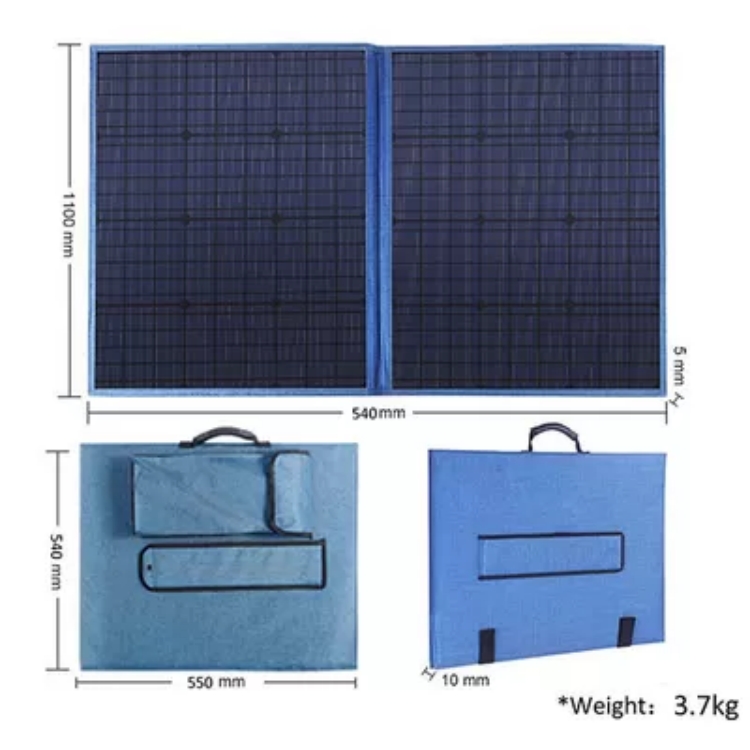

Folded Dimensions |
540 x 570 x 15 mm |
Open Dimensions |
1100 x 540 x 5 mm |
Weight |
3.7 kg |
Max System Voltage |
60V DC |
Output |
DC 18V + USB 5V Charging Ports |
Surface Coating |
High-Quality Silicon Waterproof Coating |
Temperature Range |
-20℃ to 85℃ |
Warranty |
5 Years |
Zhejiang Jingying (JYINS) Electrical Co., Ltd., established in 1993, is a leading manufacturer with over 30 years of expertise in power inverters, solar charge controllers, energy storage systems, and renewable energy solutions. Our 500+ employee factory in Wenzhou, China, serves clients across 50+ countries with ISO9001/CE/SAA/RoHS certified products.
Q: What's included in the package?

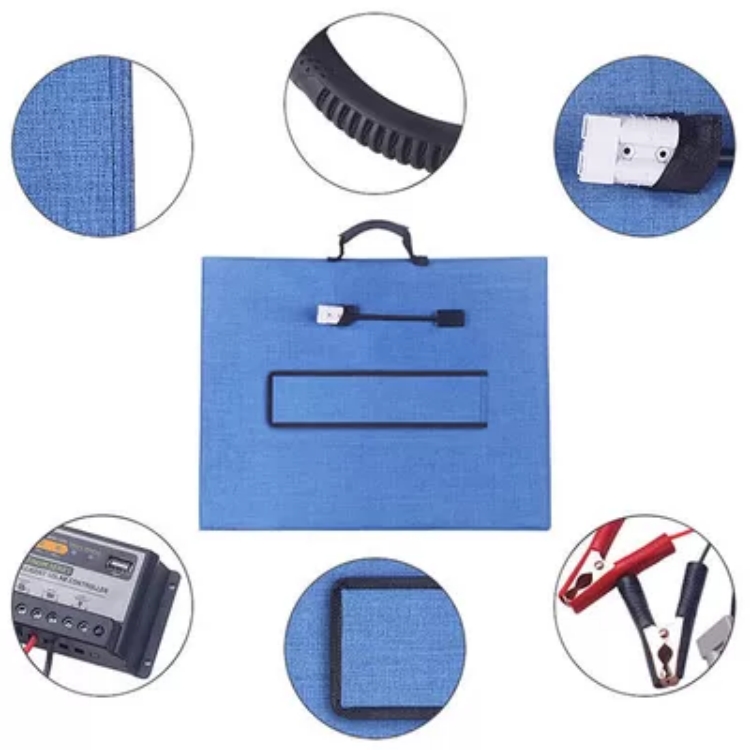

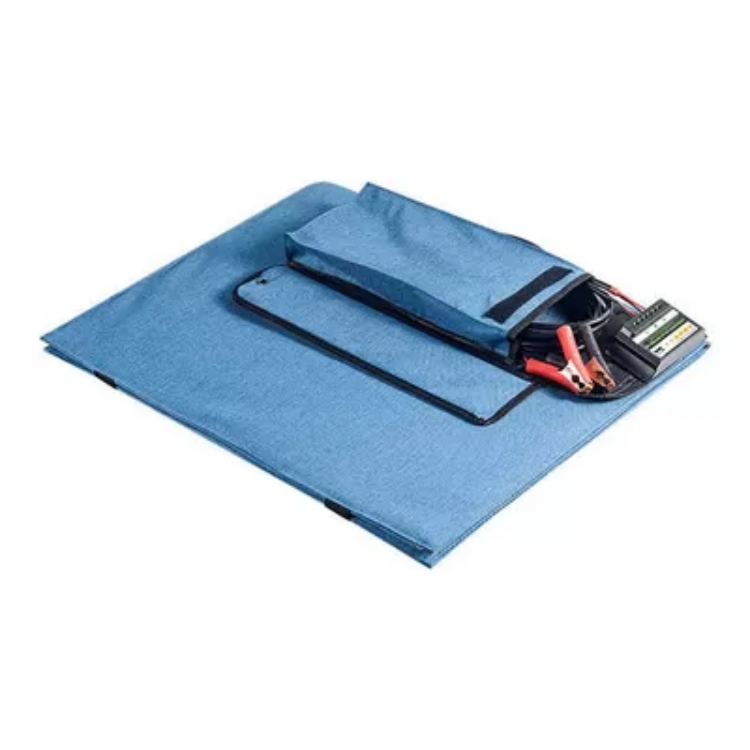

A: The solar blanket, DC output cable with standard connectors, USB charging module, carabiner clips for hanging, and user manual. MC4 adapter cables sold separately for specific power stations.
Q: How do I clean the panel surface?
A: Wipe gently with a soft damp cloth and mild soap if needed. Do not use abrasive cleaners or pressure washers. Allow to dry completely before folding and storing.
Q: Can it charge a car battery directly?
A: You MUST use a solar charge controller between the panel and battery. Direct connection can overcharge and damage the battery. A simple 10A PWM controller is sufficient for 12V battery charging.
Q: Is the output affected by partial shade?
A: Like all solar panels, shade on any cell reduces output. Position the blanket in full sun for maximum performance. The monocrystalline cells perform better than polycrystalline in partial light conditions.
